ALM – Assault
Launcher Max
The high-performance line thrower designed for tactical teams. The rugged aluminum launcher deploys a line, a grappling hook and climbing line, or a grappling hook and tactical ladder for method of entry and vessel boarding – from surface or subsurface locations. With the RGES SF-40 payload it becomes a boat-stopping tool.
MAXimum Distance
Deploys a 3,200 lb test line horizontally up to 330 ft / 100 m and a 7.0 mm climbing line with grappling hook vertically up to 165 ft / 50 m. A 65 ft / 20 m tactical ladder and grappling hook can be fully deployed.
MAXimum Safety
The safety mechanism is “always on”, resetting automatically when a projectile is inserted. The projectile’s “Push-Click” engagement allows easy reloading, even in the dark, and a pressure relief burst disk prevents unsafe pressure build-up from exposure to extreme heat. Each launcher has a luminous pressure gauge for close visibility at night.
MAXimum Performance
Multi-shot capacity: the patented nozzle valve lets any number of projectiles be pre-charged and stored with the unit, for deployment of multiple projectiles in rapid succession. The 4,500 psi high-pressure projectile adds about twice the range of the standard projectile.
Built for the field
- Launcher housing cast from 356-T6 aluminum for the best weight-to-strength ratio.
- Barrels powder-coated black for covert operations, with a lifetime guarantee against all hazards.
- Launches from a RHIB on the surface, or subsurface via diver at depths up to 32 ft / 10 m.
- Inert to seawater – for land-based, surface and subsurface maritime environments.
- With the RGES SF-40 payload, a less-than-lethal boat-stopping tool.
- Every standard ALM kit includes the ALM tool kit and a Pelican case.
Line options
Any line type can be combined with any projectile option. Custom line options and lengths are available on request.
Line specifications
| Part # | Line | Min. break load | Weight | Length |
|---|---|---|---|---|
| 801 | 7.0 mm Nylon/Spectra climbing line | 5,780 lb / 2,622 kg | 3.96 lb / 1.8 kg | 165 ft / 50 m |
| 802 | 5.5 mm Nylon/Spectra climbing line | 3,200 lb / 1,450 kg | 2.60 lb / 1.2 kg | 330 ft / 100 m |
| 803 | 4.0 mm Spectra braid line | 1,500 lb / 682 kg | 3.5 lb / 1.6 kg | 1,000 ft / 330 m |
| 815 | 8.4 mm dynamic climbing line | 3,442 lb / 1,565 kg | 7.0 lb / 3.2 kg | 230 ft / 70 m |
| 744 | Tactical ladder | 4,800 lb / 2,180 kg | 5.5 lb / 2.5 kg | 50 ft / 15 m |
| 746 | Tactical ladder | 4,800 lb / 2,180 kg | 8.0 lb / 3.6 kg | 65 ft / 20 m |
Performance at 3,000 psi / 207 bar (standard projectile)
| Part # | Line | Horizontal – line projectile | Vertical – climbing grappling hook |
|---|---|---|---|
| 801 | 7.0 mm climbing line | 165 ft / 50 m* | 80 ft / 25 m |
| 802 | 5.5 mm climbing line | 250 ft / 75 m | 110 ft / 33 m |
| 803 | 4.0 mm Spectra line | 400 ft / 104 m | n/a |
| 815 | 8.4 mm dynamic climbing line | 170 ft / 52 m | 100 ft / 30 m |
| 744 | Tactical ladder 50 ft / 15 m | n/a | 50 ft / 15 m |
Performance at 4,500 psi / 310 bar (HP projectile)
| Part # | Line | Horizontal – line projectile | Vertical – climbing grappling hook |
|---|---|---|---|
| 801 | 7.0 mm climbing line | 165 ft / 50 m* | 130 ft / 40 m |
| 802 | 5.5 mm climbing line | 330 ft / 100 m* | 180 ft / 55 m |
| 803 | 4.0 mm Spectra line | 850 ft / 260 m | n/a |
| 815 | 8.4 mm dynamic climbing line | 230 ft / 70 m* | 200 ft / 61 m |
| 744 | Tactical ladder 50 ft / 15 m | n/a | 50 ft / 15 m* |
| 746 | Tactical ladder 65 ft / 20 m | n/a | 65 ft / 20 m |
Average distances from testing under varying conditions. * At reduced pressure (full line length reached).
Features & accessories
Every part can also be ordered separately – ask for a parts quote.

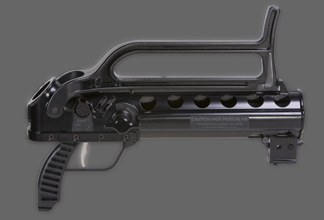

ALM barrel
Built for the missions of modern tactical and special forces units, for land-based and maritime use. Housing cast from 356-T6 aluminum.

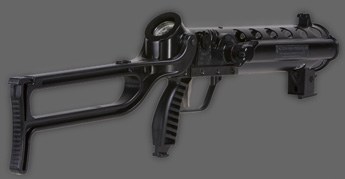

Folding stock
Designed for greater accuracy of deployment; folds into a convenient carry handle.
Standard line projectile
Throws a variety of payloads including line, rope or ascending ladders of different lengths. Distance depends on the service pressure and the line used.
High pressure projectile
Service pressure of 4,500 psi. The additional volume and pressure add about twice the range of the standard line projectile.

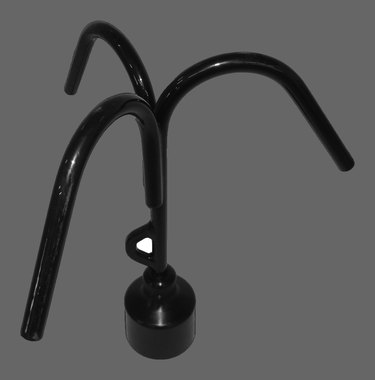

Climbing grappling hook
Three-pronged titanium hook, dipped in EFEX to reduce its sound signature and certified for climbing.

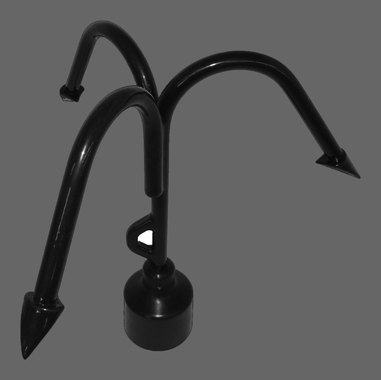

Grappling hook with barbed tines
Titanium three-pronged hook with barbed tips to ensure anchoring, EFEX-coated and certified for climbing.

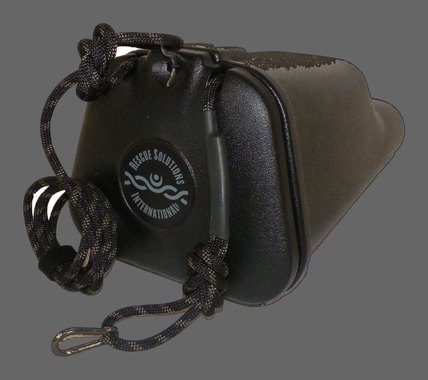

Climbing lines & payloads
Black climbing lines in 5.5, 7.0, 8.4 and 11.0 mm as standard; custom ropes on request. The RGES SF-40 payload can be deployed for less-than-lethal boat stopping.
Tactical ladder
Lightweight, durable and acoustically covert: nylon webbing with fiberglass rungs every 12 in / 30 cm. Side members have a combined breaking strength of 4,800 lbs / 2,180 kg. Custom lengths on request.
Streamline filler hose
Delivers compressed air from a high-pressure compressor, an SCBA tank or a SCUBA tank to charge the projectile. Adapters are available for each air source (American SCBA, European SCBA-DIN, SCUBA and compressor).
ALM tool kit
Included with each standard ALM kit – all the tools needed for operational maintenance.

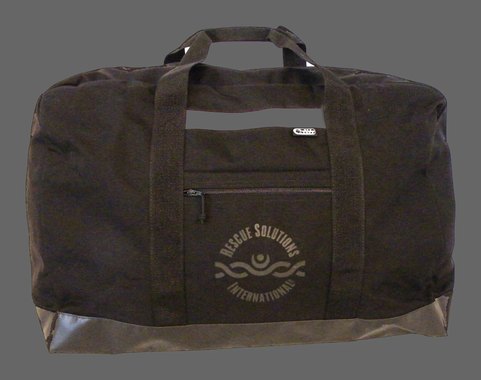

Kit carry bag
Rugged Cordura bag with two external and one internal zippered pockets, reinforced water-resistant vinyl bottom and reflective strips.

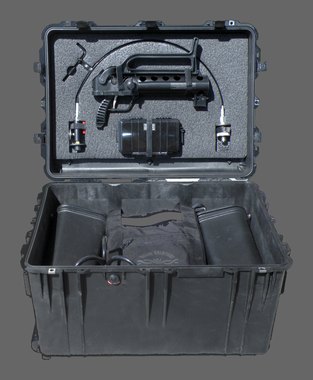

“Pelican” transport / storage case
Unbreakable, watertight, dust-proof, chemical- and corrosion-proof case of Ultra Impact structural copolymer. Can be adapted to fasten to the rail of a vessel.
Downloads
Kit spec sheets are in the kits table below.
Spare parts
Projectiles, lines, slings and other parts for your launcher can be ordered individually. Operations manuals for every system are in the downloads.
Ask for a parts quote →In the field
ALM kits
Recommended basic configurations for specific uses. ALM kits are modular – additional lines, projectiles and accessories can be added – and custom kits are available on request. Kits 470–475 use the 4,500 psi high-pressure projectile.
| Kit | Name & best use | What's included | Spec sheet | Quote |
|---|---|---|---|---|
| 460 | Climbing Line KitBest for climbing-line deployment in rugged land and maritime use | ALM launcher, 2 projectiles, 7 mm and 5.5 mm black climbing lines, titanium climbing grappling hook, ALM tool kit, carry bag, Pelican case | PDF spec sheet for kit 460 | Request quote for kit 460 |
| 461 | Method of Entry KitBest for method of entry and vessel boarding | ALM launcher, 2 projectiles, 7 mm climbing line, 50 ft / 15 m tactical ladder, titanium climbing grappling hook, ALM tool kit, carry bag, Pelican case | PDF spec sheet for kit 461 | Request quote for kit 461 |
| 463 | Combination KitBest for climbing lines and a ladder in one kit | ALM launcher, 2 projectiles, 2 climbing lines, 50 ft / 15 m tactical ladder, titanium climbing grappling hook, ALM tool kit, carry bag, Pelican case | PDF spec sheet for kit 463 | Request quote for kit 463 |
| 470 | High Pressure Climbing Line KitBest for rope traverse and long climbing-line deployment | ALM launcher, 2 high-pressure (4,500 psi) projectiles, 5.5 mm and 8.4 mm climbing lines, titanium climbing grappling hook, ALM tool kit, carry bag, Pelican case | PDF spec sheet for kit 470 | Request quote for kit 470 |
| 471 | High Pressure Method of Entry KitNSN 1095-01-599-7144Best for surface and subsurface vessel boarding | ALM launcher, 2 high-pressure projectiles, 65 ft / 20 m tactical ladder, 8.4 mm climbing line, titanium climbing grappling hook, ALM tool kit, carry bag, Pelican case | PDF spec sheet for kit 471 | Request quote for kit 471 |
| 473 | High Pressure Combination KitBest for maximum reach with a ladder and climbing lines | ALM launcher, 2 high-pressure projectiles, 65 ft / 20 m tactical ladder, 5.5 mm and 8.4 mm climbing lines, titanium climbing grappling hook, ALM tool kit, carry bag, Pelican case | PDF spec sheet for kit 473 | Request quote for kit 473 |
| 474 | High Pressure RGES SF-40 KitBest for less-than-lethal stopping of non-compliant vessels | ALM launcher, 2 high-pressure projectiles, 2 SF-40 RGES propeller-entanglement payloads (40 ft / 12 m), ALM tool kit, carry bag, Pelican case | PDF spec sheet for kit 474 | Request quote for kit 474 |
| 475 | Ascender KitBest for vertical ascent up to 50 m | ALM launcher, 2 high-pressure projectiles, 2 × 11 mm black static lines (165 ft / 50 m), 2 titanium climbing grappling hooks, ALM tool kit, carry bag, Pelican case | PDF spec sheet for kit 475 | Request quote for kit 475 |
