Tactical
ResQmax™
A pneumatic line thrower designed to deploy a line only, a grappling hook and climbing line, or a grappling hook and ascending ladder to an otherwise inaccessible point in land-based and maritime environments – without putting the operator at risk.
MAXimum Distance
Deploys a standard line up to 250 ft / 75 m depending on the service pressure, the weight of the line and the projectile. Distances of over 400 ft / 120 m can be achieved with customized line options.
MAXimum Safety
The safety mechanism is “always on”, resetting automatically when a projectile is inserted. The projectile’s “Push-Click” engagement allows easy reloading, even in the dark, and a pressure relief burst disk prevents unsafe pressure build-up from exposure to extreme heat.
MAXimum Performance
Multi-shot capacity: the patented nozzle valve lets any number of projectiles be pre-charged and stored with the unit, for deployment of multiple projectiles in rapid succession.
Built for the field
- Works as a line thrower or a grapnel launcher, in urban and maritime environments.
- Launcher housing injection-molded from polycarbonate for durability and high impact resistance.
- Titanium grappling hooks coated with EFEX to reduce sound signature, certified for climbing.
- Grappling hooks designed for different entry points such as parapets, ledges or railings.
- Patented air-thrust technology: non-pyrotechnic, reusable and refillable.
Line options
Standard lines for the Tactical ResQmax™. All lines listed for the ResQmax™ can also be used, and custom lines can be made for specific applications. Both training and standard projectiles work with any of these lines.
Line specifications
| Part # | Line | Min. break load | Weight | Length |
|---|---|---|---|---|
| 801 | 7 mm Nylon/Spectra climbing line | 5,780 lb / 2,622 kg | 3.96 lb / 1.8 kg | 165 ft / 50 m |
| 802 | 5.5 mm Nylon/Spectra climbing line | 3,200 lb / 1,450 kg | 2.60 lb / 1.2 kg | 250 ft / 75 m |
| 735 | Ascending ladder | 7,500 lb / 3,400 kg | 5.2 lb / 2.35 kg | 40 ft / 12 m |
Performance – average distance at 3,000 psi / 207 bar
| Part # | Line | Horizontal – line projectile | Vertical – climbing grappling hook |
|---|---|---|---|
| 801 | 7 mm climbing line | 190 ft / 55 m | 80 ft / 25 m |
| 802 | 5.5 mm climbing line | 250 ft / 75 m | 110 ft / 33 m |
| 735 | Ascending ladder (40 ft / 12 m) | n/a | 40 ft / 12 m |
Average distances from testing under varying conditions. Standard Tactical ResQmax™ kits include a 50 ft / 15 m tactical ladder.
Features & accessories
Every part can also be ordered separately – ask for a parts quote.
Tactical ResQmax™ launcher
A diverse line deployment tool that works as a line thrower or a grapnel launcher in urban and maritime environments. Injection-molded polycarbonate housing.
Folding stock
Designed for greater accuracy of deployment; folds into a convenient carry handle.
Standard line projectile
Throws a variety of payloads including line, rope or ascending ladders of different lengths. Distance depends on the service pressure and the line used.
Red & luminescent training projectiles
High-density urethane covers reduce “bounce” on landing – ideal for repeated use, RASing, UNREPS and training. The luminescent cover glows for night operations.
Climbing grappling hook
Three-pronged titanium hook, dipped in EFEX to reduce its sound signature and certified for climbing.
Grappling hook with barbed tines
Titanium three-pronged hook with barbed tips to ensure anchoring, EFEX-coated and certified for climbing.
Climbing lines & payloads
Black climbing lines in 5.5 mm and 7.0 mm diameters as standard; custom ropes on request.
Tactical ladder
Lightweight, durable and acoustically covert: nylon webbing with fiberglass rungs every 12 in / 30 cm. Side members have a combined breaking strength of 4,800 lbs / 2,180 kg. Custom lengths on request.
Streamline filler hose
Delivers compressed air from a high-pressure compressor, an SCBA tank or a SCUBA tank to charge the projectile. Adapters are available for each air source (American SCBA, European SCBA-DIN, SCUBA and compressor).
ResQmax™ tool kit
Optional with any Tactical ResQmax™ kit – all the tools needed for operational maintenance.
Kit carry bag
Rugged Cordura bag with two external and one internal zippered pockets, reinforced water-resistant vinyl bottom and reflective strips.
“Pelican” transport / storage case
Unbreakable, watertight, dust-proof, chemical- and corrosion-proof case of Ultra Impact structural copolymer. Can be adapted to fasten to the rail of a vessel.
Downloads
- Tactical ResQmax™ brochure
- Tactical ResQmax™ operations manual
- Tactical ResQmax™ technical specifications
Kit spec sheets are in the kits table below.
Spare parts
Projectiles, lines, slings and other parts for your launcher can be ordered individually. Operations manuals for every system are in the downloads.

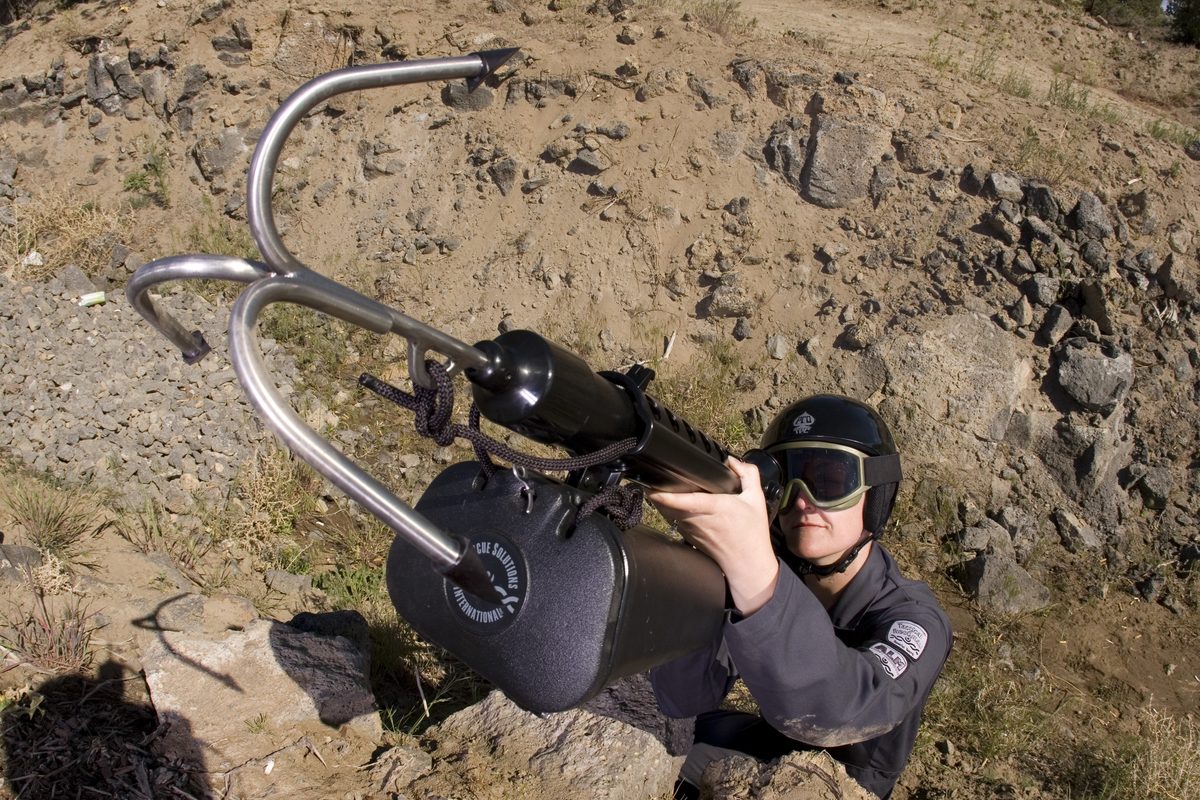

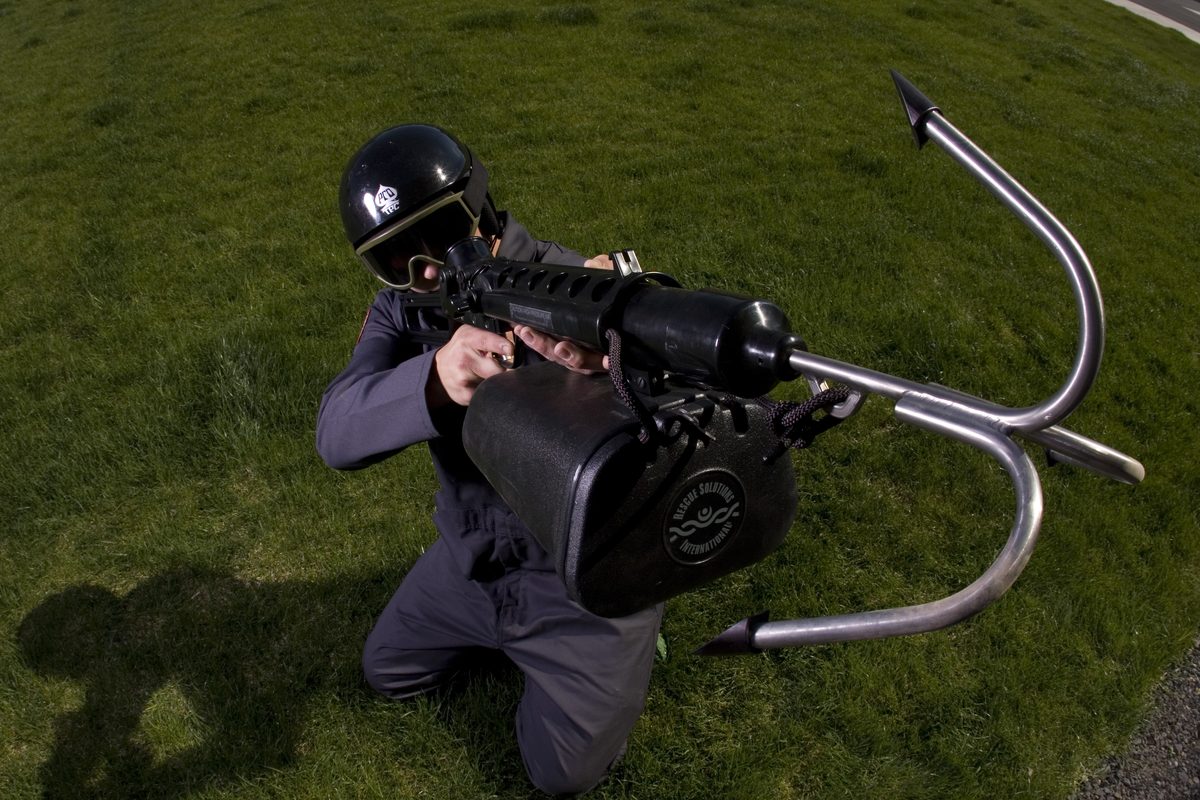

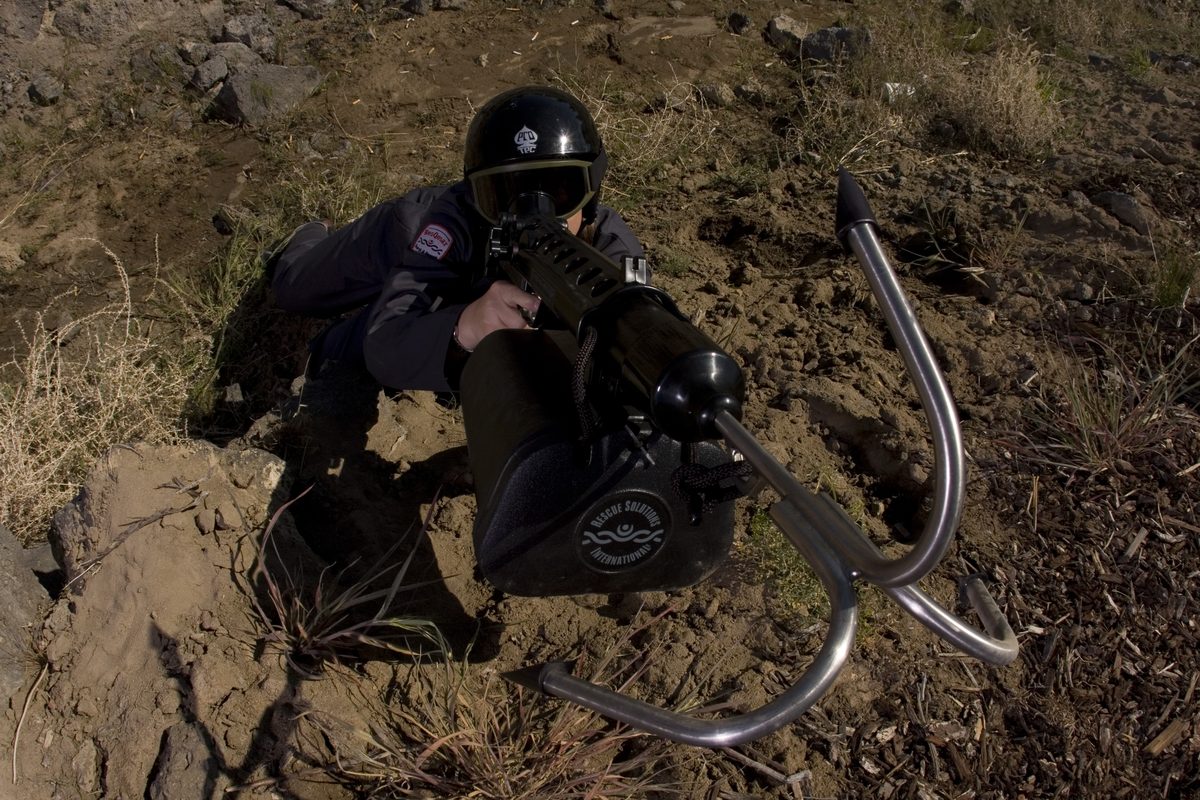

Ask for a parts quote →In the field
Tactical ResQmax™ kits
The Tactical ResQmax™ is modular: additional projectiles, lines and accessories can be purchased separately. Custom configurations are available on request.
| Kit | Name & best use | What's included | Spec sheet | Quote |
|---|---|---|---|---|
| 450 | Climbing Line KitBest for tactical ascent and rope traverse | Tactical ResQmax launcher, 2 projectiles, 7 mm and 5.5 mm black climbing lines, titanium climbing grappling hook, filler hose, spares, carry bag | PDF spec sheet for kit 450 | Request quote for kit 450 |
| 457 | Method of Entry KitBest for urban method of entry | Tactical ResQmax launcher, 2 projectiles, 7 mm black climbing line, 50 ft / 15 m tactical ladder, titanium climbing grappling hook, filler hose, spares, carry bag | PDF spec sheet for kit 457 | Request quote for kit 457 |
| 458 | Combination KitBest for teams that need both climbing lines and a ladder | Tactical ResQmax launcher, 2 projectiles, 7 mm and 5.5 mm climbing lines, 50 ft / 15 m tactical ladder, titanium climbing grappling hook, filler hose, spares, carry bag | PDF spec sheet for kit 458 | Request quote for kit 458 |
